Listeners, Gates, Executors

Every GDLink behavior is built from three roles wired in a fixed order: a listener notices something, a gate decides whether it counts, and an executor acts. The order never changes — pulses always flow listener → gate → executor — which is what makes a graph readable like a sentence.

Collision(group=Enemy) -> AND -> Variable(hp, subtract, 10)
   listener               gate     executor

Listeners — notice something

A listener watches one source and emits a pulse when its condition is met. There’s one listener per kind of event:

  • Input — Keyboard, Mouse, Gamepad, UI, XR controllers

  • World — Collision, Near, Ray, Radar, Area

  • State & data — Property (a value crossing a threshold), Variable, Signal

  • Time & flow — Always, Timer, Delay

Listeners speak in pulses, not just “on/off”. A positive pulse fires the moment a condition becomes true; a negative pulse fires the moment it becomes false. Pulses are edge-derived and cleared every tick, so a brick reacts to the transition, not just the steady state — that’s how “on press” differs from “while held”.

Gates — decide whether it counts

A gate is a pure filter. It takes incoming pulses and passes or blocks them — and that’s all it does. A gate never moves a node, writes a variable, or queries the scene; that discipline keeps graphs predictable.

  • Boolean logic — AND, OR, NAND, NOR, XOR combine several inputs

  • State routing — the State Gate only passes when the node is in a given state

Keyboard(W) + Ray(Down, grounded) -> AND -> Motion3D(jump)

Here the jump only fires when both inputs pulse — pressing W while grounded. Swap AND for OR and either one triggers it. The gate is where “when should this happen?” gets answered.

Note

Gates are stateless and side-effect-free by design. If you need a decision that depends on a spatial query or on locking something, that logic lives in the executor, not the gate.

Executors — make it happen

An executor performs the actual work. This is the widest category, because it’s everything a game does:

  • Move & transform — Motion2D/3D, Transform2D/3D, Camera

  • Data & flow — Variable, State, Message, Game

  • Presentation — Label, UI Visibility, Sprite, Animation, Light, Material

Several executors can hang off one gate, and they all fire when it passes — so a single condition can move a character, decrement health, and update the HUD at once.

Putting it together

A single condition can drive several executors at once. Each assembly below is one complete behavior — notice → decide → act — shown exactly as it appears in the GDLink editor.

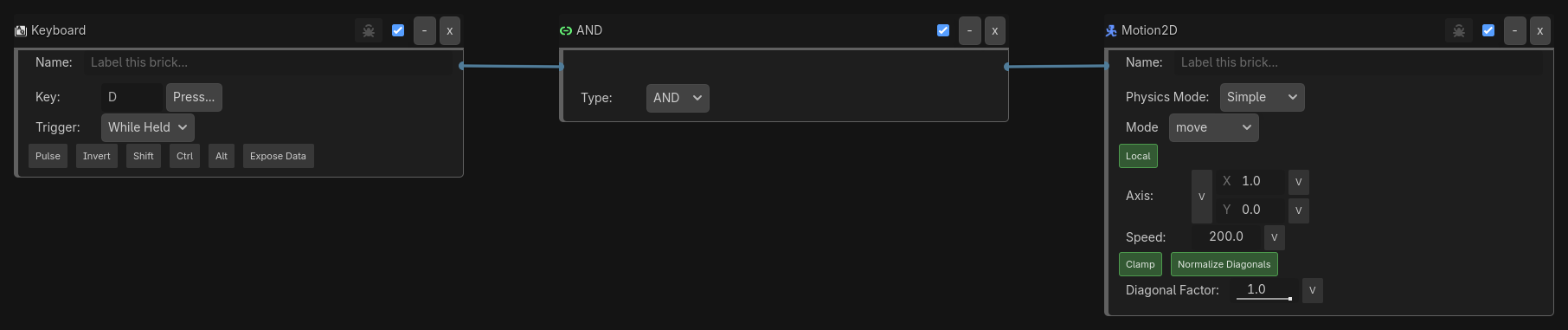

Move — hold a direction key to move the character:

Keyboard listener set to While Held, wired through an AND gate into a Motion2D move executor

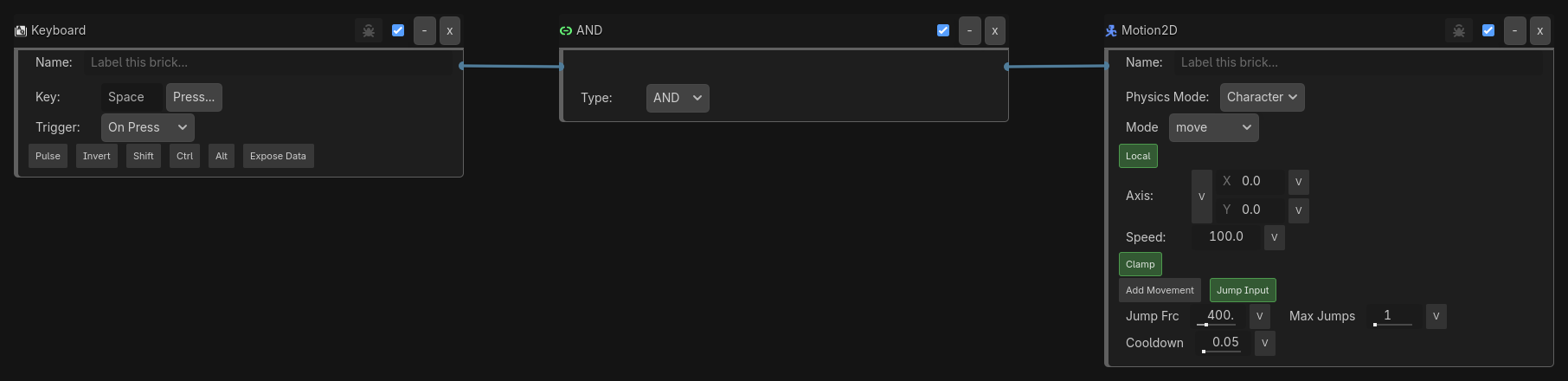

Jump — tap Space to jump:

Keyboard listener for Space set to On Press, wired through an AND gate into a Motion2D jump executor

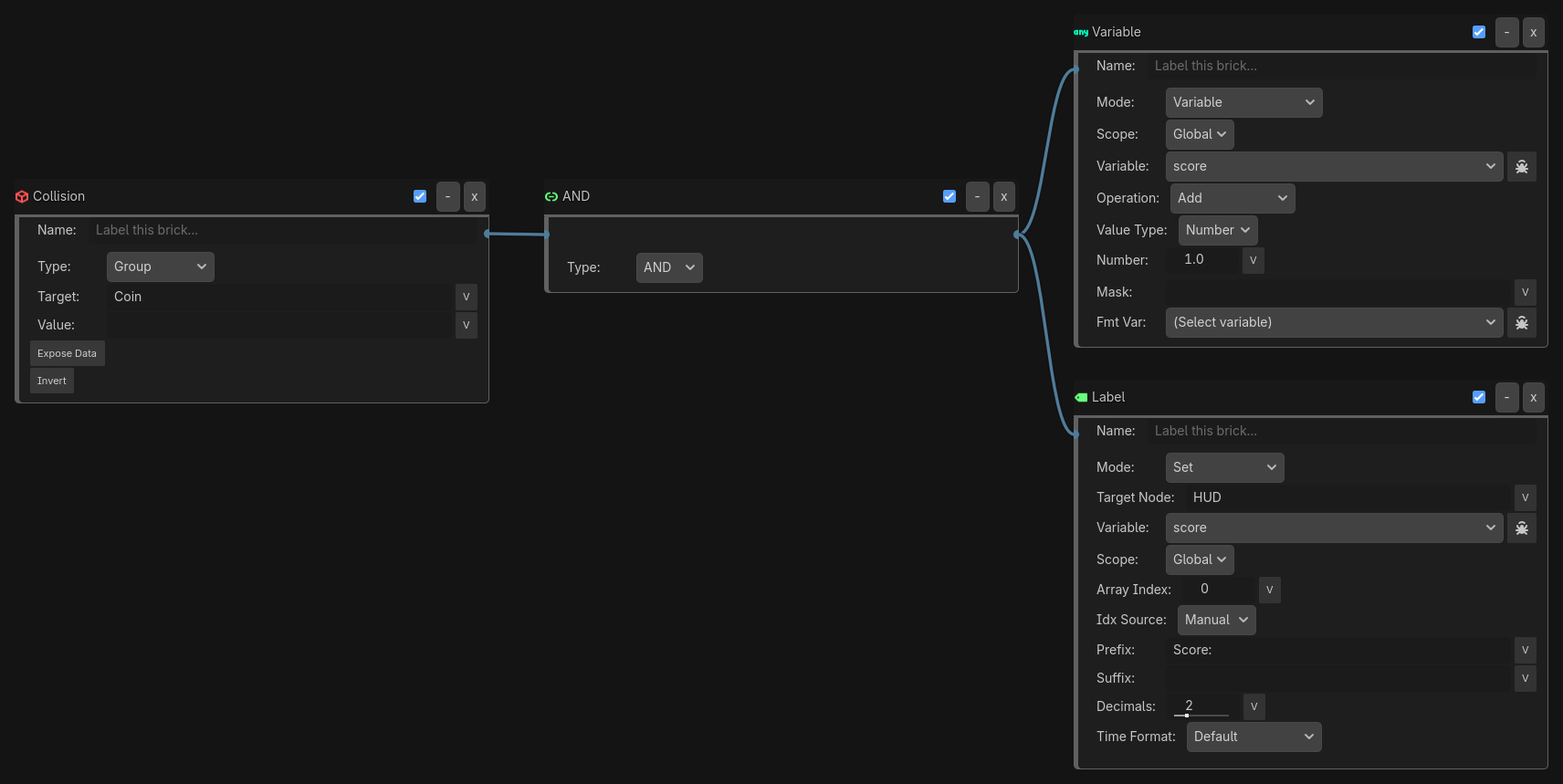

Collect a coin — one collision both adds to the score and refreshes the HUD label:

Collision listener for the Coin group through an AND gate, fanning out to a Variable add executor and a Label executor

Three behaviors, three sentences — every one is just notice → decide → act.
