GDScript

Category: Gate Tier: Pro

Purpose

Executes custom GDScript code to make complex decisions that can’t be easily expressed with logic gates or expressions.

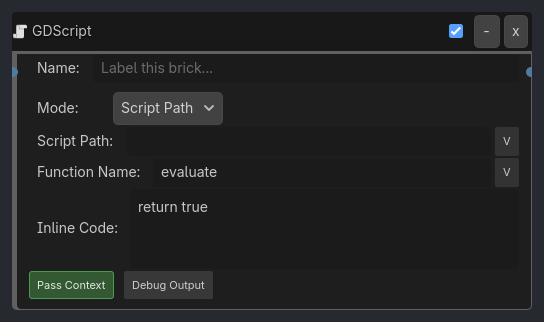

Visual Reference

As added to your scene

When To Use

1. Complex AI State Machine

Always Listener
-> GDScript Gate (Script: "ai_brain.gd", Function: "decide_action")
-> Animation Executor (Play: animation from Local Variable "ai_action")

AI brain script returns TRUE and sets “ai_action” variable, which drives animation.

2. Custom Scoring System

Collision Listener (Group: "targets")
-> GDScript Gate (Inline: "return calculate_score > 100")
-> PRINT Executor ("Victory!")

Custom scoring logic too complex for Expression Gate.

3. Pathfinding Decision

Near Listener (Distance: 20.0, Expose Data: true)
-> GDScript Gate (Script: "pathfinding.gd", Function: "has_clear_path")
-> Motion Executor (Move toward target)

Checks if path to target is clear using A* or NavMesh.

4. Procedural Animation Blending

Keyboard Listener (Any key)
-> GDScript Gate (Script: "animation_blend.gd")
-> Animation Executor (Controlled by script)

Script calculates animation blend weights based on movement speed, direction, etc.

5. Inventory Logic

Keyboard Listener (Key: "E")
-> Near Listener (Group: "items")
-> GDScript Gate (Script: "inventory.gd", Function: "can_pickup")
-> Property Executor (Add to inventory)

Script checks inventory space, item type, player level, etc.

Generated UI Mockup — showing expanded properties

GDScript

-

x

Name:

Label this brick...

Mode:

v

Script Path:

v

Function Name:

v

Inline Code:

v

Pass Context:

v

Debug Output:

v

Properties

Property	Type	Default	Notes
mode	String, “Script Path”		Script Path (load external.gd file) or Inline Code (write code directly)
script_path	String, “”		Path to.gd file (e.g., res://scripts/ai_logic.gd)
function_name	String, “evaluate”		Function to call - must return bool
inline_code	Text, “return true”		GDScript code to execute (must return bool)
pass_context	Boolean, true		Pass brick context (listeners, globals, locals) to function
debug_output	Boolean, false		Print function return value to console
