Gravity

Category: Executor Tier: Basic

Purpose

Overrides default physics gravity for an object, supporting directional gravity, point attraction (gravity wells), and zero gravity for complex gameplay mechanics like walking on walls, planetary orbit, or localized gravity zones.

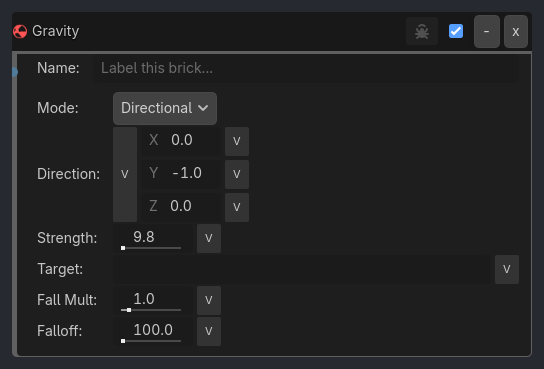

Visual Reference

As added to your scene

Generated UI Mockup — showing expanded properties

Gravity

-

x

Name:

Label this brick...

Mode:

v

Vector:

v

Vector:

v

Strength:

v

Target Object:

v

Falloff:

v

Properties

Property	Type	Default	Notes
mode	String, “Directional”		Gravity mode - Directional, Point, Zero, or Restore
vector	Vector3, Vector3(0, -1, 0)		Directional gravity vector. The serialized property remains Vector3 for compatibility; 2D/Control authoring hides Z through the existing axis-visibility workflow while 3D authoring shows X/Y/Z.
vector	Vector3, Vector3(0,-1,0)		Direction of gravity for Directional mode
strength	Float, 9.8		Magnitude of gravity force
target_object	String, “”		Name of attractor object for Point mode
falloff	Float, 0.0		Distance-based gravity attenuation for Point mode
