Transform2D

Category: Executor Tier: Basic

Purpose

A unified executor for manipulating a 2D object’s position, rotation, and scale.

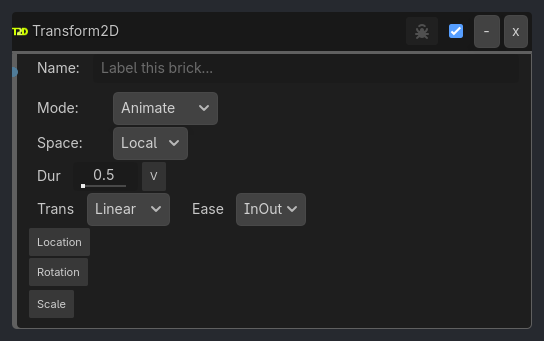

Visual Reference

As added to your scene

Runtime Behavior

Inputs

• Activate (Boolean): Triggers the transform operation.

Properties

Core Configuration

• operation (Enum, Animate)

  • Set: Instantly snaps to target values.

  • Animate: Smoothly tweens to target values over duration.

  • Ping-Pong: Tweens to target, then returns to start.

• space (Enum, Local)

  • Local: Relative to parent.

  • Global: Relative to world space for Node2D targets.

• duration (Float, 0.5): Time in seconds for Animate / Ping-Pong.

• tween_trans (Enum, Linear): Transition type.

• tween_ease (Enum, InOut): Easing direction.

Transform Channels

• Location

  • enable_loc (Bool, false): Modify location.

  • loc_mode (Enum, Relative): Relative or Absolute.

  • loc_axes (Enum, All): All, X, or Y.

  • target_loc (Vector2): Target position.

  • Teleport mapping:

    • Teleport / Snap = operation = Set, enable_loc = true, loc_mode = Absolute

    • space = Local teleports relative to the parent transform

    • space = Global teleports in world space for Node2D targets

• Rotation

  • enable_rot (Bool, false): Modify rotation.

  • rot_mode (Enum, Relative): Relative or Absolute.

  • target_rot (Float): Target rotation in degrees.

  • rot_continuous (Bool, false): Continuous degrees-per-second rotation in Relative mode.

• Scale

  • enable_scale (Bool, false): Modify scale.

  • scale_mode (Enum, Absolute): Relative or Absolute.

  • scale_axes (Enum, All): All, X, or Y.

…

Generated UI Mockup — showing expanded properties

Transform2D

-

x

Name:

Label this brick...

Mode:

Animate

Space:

Local

Target:X

0

v

Y

0

v

Scale:X

1

v

Y

1

v

Dur

0.5

v

Trans

Linear

Ease

InOut

Location

Mode

Relative

Axis

All

Rotation

Mode

Relative

Angle

0.0

v

Continuous

Scale

Mode

Relative

Axis

All

Properties

Property	Type	Default	Notes
Mode	option	Animate	How to apply transform changes (Animate/Ping-Pong require single-tick triggers)
Space	option	Local	Coordinate space
Dur	float	0.5	Animation duration in seconds (0.0 = instant)
Trans	option	Linear	Tween transition type
Ease	option	InOut	Easing direction
Location	bool	False	Enable Position control
Mode	option	Relative
Axis	option	All
Target	vector2	[0, 0]	Target position
Rotation	bool	False	Enable Rotation control
Mode	option	Relative
Angle	float	0.0	Target rotation (Degrees)
Continuous	bool	False	Spin continuously (Relative mode only)
Scale	bool	False	Enable Scale control
Mode	option	Relative
Axis	option	All
Scale	vector2	[1, 1]	Target scale
