Light

Category: Executor Tier: Basic

Purpose

Provides a compact, gameplay-focused runtime control surface for Godot Light2D and Light3D nodes.

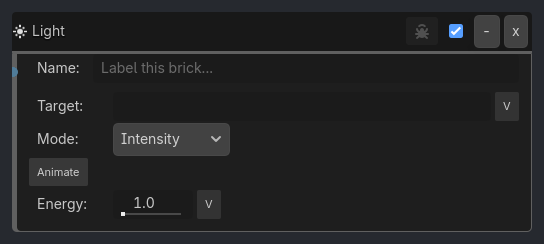

Visual Reference

As added to your scene

Runtime Behavior

• Implemented natively in C++ (LightExecutor)

• Writes directly to Godot Light2D / Light3D properties

• Emits verbose proof strings in the format:

[Light] exec_name | Mode | target=LightType | ...

These logs are the canonical parameter-proof path for automated coverage.

Generated UI Mockup — showing expanded properties

Light

-

x

Name:

Label this brick...

Target:

v

Mode:

Intensity

Dur:

0.4

v

Energy:

1.0

v

Kelvin:

6500.0

v

Cone:

45.0

v

On

Shadows

Range

8.0

v

Falloff

1.0

v

Indirect

1.0

v

Fog

1.0

v

Animate

Verbose

Properties

Property	Type	Default	Notes
Target	string		Light node name or relative path (empty = self/first child Light3D)
Mode	option	Intensity	Convenient gameplay-focused light controls
Animate	bool	False	Tween numeric/color changes instead of applying them instantly
Dur	float	0.4	Tween duration in seconds
On	bool	True	Show or hide the target light
Shadows	bool	True	Toggle shadow casting
Energy	float	1.0	Light intensity multiplier
Color	color	[1, 1, 1, 1]	Light color tint
Kelvin	float	6500.0	Color temperature in Kelvin
Range	float	8.0	Reach for Omni/Spot lights
Falloff	float	1.0	Distance attenuation for Omni/Spot lights
Cone	float	45.0	SpotLight3D cone angle in degrees
Indirect	float	1.0	GI bounce multiplier
Fog	float	1.0	Volumetric fog contribution
Verbose	bool	False	Log Light executor mode, target, and values (controlled by ladybug button)
