Vehicle3D

Category: Executor Tier: Plus

Purpose

Provides a unified native controller for land, air, and water travel.

Visual Reference

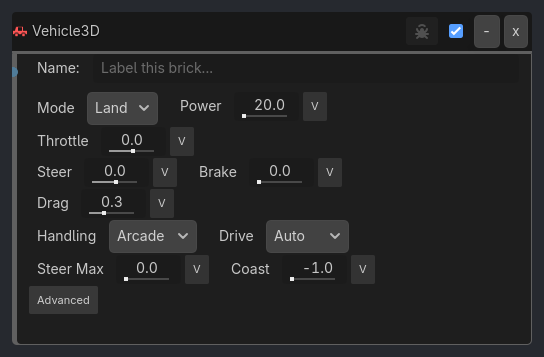

As added to your scene

Generated UI Mockup — showing expanded properties

Vehicle3D

-

x

Name:

Label this brick...

Surface Y:

0.2

v

Mode

Land

Power

20.0

v

Throttle

0.0

v

Steer

0.0

v

Brake

0.0

v

Drag

0.3

v

Handling

Arcade

Drive

Auto

Steer Max

0.0

v

Coast

-1.0

v

Layout

Quad

Legacy Wheels

4

v

Min Spd

0.0

v

Max Spd

0.0

v

Rest Len

0.0

v

Travel

0.0

v

Stiffness

0.0

v

Max Frc

0.0

v

Damp In

0.0

v

Damp Out

0.0

v

Grip

0.0

v

Roll

-1.0

v

Mass Ovr

Mass

1200.0

v

COM Ovr

COM

[0, -0.25, 0]

v

Per-Wheel

Lift

0.2

v

Banking

1.0

v

Buoyancy

1.5

v

Advanced

Alt Lock

Verbose

Properties

Property	Type	Default	Notes
Mode	option	Land	Select the native handling kernel. Land uses VehicleBody3D + VehicleWheel3D, Air uses lift/thrust on RigidBody3D, Water uses buoyancy on RigidBody3D.
Power	float	20.0	Base drive force multiplier. Land uses it for engine force; Air and Water use it as thrust.
Throttle	float	0.0	Drive input from -1.0 to 1.0. Bind to a variable for analog acceleration or reverse. Default is idle/coast.
Steer	float	0.0	Directional input from -1.0 to 1.0. Land steers wheels; Air and Water use it for turning/banking.
Brake	float	0.0	Land only. 0 = no explicit brake; passive coast braking may still apply from drag/profile. 1 = full explicit braking.
Drag	float	0.3	Passive damping applied every tick. Lower values suit land/air; higher values suit water.
Handling	option	Arcade	Land only. Full baseline handling profile. Arcade stays lighter and more forgiving; Realistic increases coast brake, lowers grip, and raises roll response.
Drive	option	Auto	Land only. Auto uses layout-based defaults. FWD/RWD/AWD override drive wheels by axle. Custom unlocks explicit per-slot steer/drive/brake roles.
Steer Max	float	0.0	Land only. Maximum steering angle in radians. Leave at 0 to inherit the selected handling profile.
Coast	float	-1.0	Land only. Passive brake multiplier used when throttle is near zero and Brake=0. Leave at -1 to use the selected profile.
Advanced	bool	False	Land only. Reveal layout, body overrides, easy global tuning, and compact runtime wheel overrides.
Layout	option	Quad	Land only. Slot layout used for drive roles and optional per-wheel runtime overrides. VehicleWheel3D child order must match the selected layout.
Legacy Wheels	int	4	Legacy compatibility fallback used when older scenes do not have wheel_layout saved. New Land setups should use Layout instead.
Min Spd	float	0.0	Land only. Optional horizontal speed floor in km/h while throttle input is active. 0 disables the assist. Use the same units as the speedometer demo.
Max Spd	float	0.0	Land only. Optional horizontal speed ceiling in km/h. 0 disables the cap. A value of 100 governs the vehicle at roughly 100 km/h on the speedometer path.
Rest Len	float	0.0	Land only. Target spring length at rest. Leave at 0 to inherit the selected handling profile.
Travel	float	0.0	Land only. Extra suspension travel before bottoming out. Leave at 0 to keep the automatic value derived from rest length.
Stiffness	float	0.0	Land only. Spring rate. Leave at 0 to inherit the selected handling profile.
Max Frc	float	0.0	Land only. Per-wheel spring force cap. Leave at 0 to use max(6000, mass * 9.8 * 1.25).
Damp In	float	0.0	Land only. Resistance while the suspension compresses. Leave at 0 to inherit the selected handling profile.
Damp Out	float	0.0	Land only. Resistance while the suspension extends again. Leave at 0 to inherit the selected handling profile.
Grip	float	0.0	Land only. Global grip override. Leave at 0 to use the selected handling profile. Per-wheel Grip only changes runtime wheel bite; wheel geometry stays on VehicleWheel3D.
Roll	float	-1.0	Land only. Global roll influence override. Leave at -1 to use the selected handling profile. Per-wheel Roll only changes runtime body response.
Mass Ovr	bool	False	Land only. When enabled, Vehicle Mass overwrites the VehicleBody3D mass at runtime. When disabled, the authored node mass is restored.
Mass	float	1200.0	Land only. Runtime mass override. Active only when Mass Ovr is enabled.
COM Ovr	bool	False	Land only. When enabled, Center of Mass overwrites the VehicleBody3D custom center of mass at runtime. When disabled, the authored node COM is restored.
COM	vector3	[0, -0.25, 0]	Land only. Runtime custom center of mass. Active only when COM Ovr is enabled.
Per-Wheel	bool	False	Land only. Reveal compact per-slot runtime overrides. Use this for drive roles, wheel grip, and wheel roll response; keep wheel radius and detailed suspension geometry on the native VehicleWheel3D nodes.
Lift	float	0.2	Upward force proportional to v² (L = lift_coeff * speed²). Higher = more lift at speed.
Banking	float	1.0	Roll torque applied during turns. Only active when steer_input != 0. Requires RigidBody3D axis_lock_angular_z = OFF. 0 = no roll, 1 = natural bank, 2+ = exaggerated.
Alt Lock	bool	False	[Not yet active] Reserved for PID altitude hold. Has no runtime effect in this version.
Buoyancy	float	1.5	Upward force when submerged: F = buoyancy * submersion_depth * mass * 9.8.
Surface Y	float	0.2	World Y height of the water surface. Vehicle floats to this height.
Verbose	bool	False	Log vehicle state (controlled by ladybug button)
