Vibration

Category: Executor Tier: Basic

Purpose

Triggers gate/gamepad rumble for tactile feedback.

Visual Reference

As added to your scene

When To Use

1. Weapon Fire

Keyboard Listener (Key: "Space", Tap: true)
-> AND Gate
-> Vibration Executor (Pattern: Pulse, Intensity: 0.7, Duration: 0.1)
-> Sound Executor (Play: "gunshot.wav")

Short vibration on each shot.

2. Explosion Impact

Collision Listener (Group: "explosives")
-> AND Gate
-> Vibration Executor (Pattern: Ramp Down, Intensity: 1.0, Duration: 0.5, Strong: 1.0, Weak: 0.5)

Heavy rumble that fades.

3. Low Health Heartbeat

Property Listener (Global "health" < 20)
-> Always Listener (Pulse: 1 second)
-> AND Gate
-> Vibration Executor (Pattern: Pulse, Intensity: 0.3, Duration: 0.15)

Rhythmic pulse when low health.

4. Driving Engine

Property Listener (Global "engine_on" == true)
-> Always Listener
-> AND Gate
-> Vibration Executor (Pattern: Continuous, Intensity: 0.4, Duration: 0.1, Strong: 0.6, Weak: 0.2)

Continuous engine rumble (retriggered every 0.1s).

5. Charging Attack

Keyboard Listener (Key: "C", Hold: true)
-> AND Gate
-> Vibration Executor (Pattern: Ramp Up, Intensity: 0.8, Duration: 2.0)

Vibration intensifies as attack charges.

Runtime Behavior

Executes: Sends vibration command to game gate

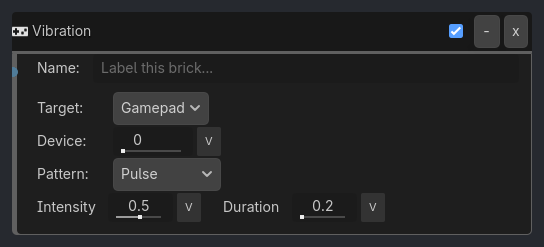

Generated UI Mockup — showing expanded properties

Vibration

-

x

Name:

Label this brick...

Device Id:

v

Pattern:

v

Intensity:

v

Duration:

v

Properties

Property	Type	Default	Notes
device_id	Integer, 0		Gamepad device ID
pattern	String, “Pulse”		Vibration pattern - Pulse or Continuous
intensity	Float, 0.5		Vibration strength (0-1)
duration	Float, 0.2		How long to vibrate in seconds
