Random

Category: Executor Tier: Basic

Purpose

Generates random values and stores them in variables.

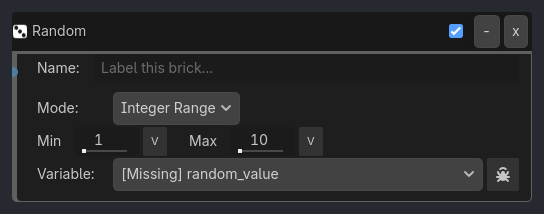

Visual Reference

As added to your scene

When To Use

1. Random Damage

Keyboard Listener (Key: "Space")
-> AND Gate
-> Random Executor (Integer, Min: 20, Max: 30, Target: Local "damage_dealt")
-> Property Executor (Set Global "enemy_health" -= Local "damage_dealt")

Deal 20-30 random damage.

2. Random Loot Drop

Collision Listener (Group: "enemies")
-> Property Listener (Global "enemy_health" == 0)
-> AND Gate
-> Random Executor (Choice: "sword,shield,potion", Target: Local "drop_item")
-> Edit Object Executor (Add: "res://items/" + Local "drop_item" + ".tscn")

Enemy drops random item on death.

3. Procedural Spawn Position

Always Listener (Pulse: 2 seconds)
-> AND Gate
-> Random Executor (Float, Min: -10, Max: 10, Target: Local "spawn_x")
-> Random Executor (Float, Min: -10, Max: 10, Target: Local "spawn_z")
-> Edit Object Executor (Add: "res://enemy.tscn", Position: (Local "spawn_x", 0, Local "spawn_z"))

Spawn enemies at random XZ positions every 2 seconds.

4. Random Color Variation

Message Listener (Subject: "spawn")
-> AND Gate
-> Random Executor (Color, Target: Local "color")
-> Material Executor (Albedo Color: Local "color")

Each spawned object gets random color.

5. Dice Roll Mini-Game

Keyboard Listener (Key: "R", Tap: true)
-> AND Gate
-> Random Executor (Integer, Min: 1, Max: 20, Target: Global "dice_roll")
-> PRINT Executor ("You rolled: {dice_roll}")

Roll 20-sided die (D20).

Runtime Behavior

Executes: Generates a random value and stores it in specified variable

Generated UI Mockup — showing expanded properties

Random

-

x

Name:

Label this brick...

Random Mode:

v

Int Min:

v

Int Max:

v

Variable Name:

v

Properties

Property	Type	Default	Notes
random_mode	String, “Integer Range”		Type of random value - Integer Range, Float Range, Boolean, or Choice List
int_min	Integer, 1		Minimum value for Integer Range
int_max	Integer, 10		Maximum value for Integer Range
variable_name	String, “random_value”		Variable to store result
