Label

Category: Executor Tier: Basic

Purpose

Writes formatted text into a target UI node.

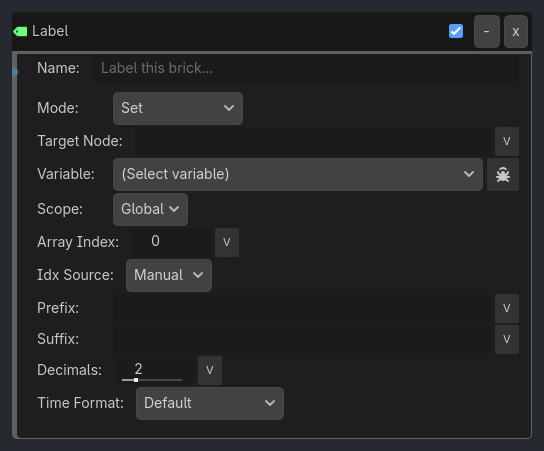

Visual Reference

As added to your scene

Runtime Behavior

Inputs

• Activate (Boolean): Writes the formatted text when triggered.

Properties

• property_name (String, "")

• Variable name to read and display.

• scope (Enum, Global)

• Local: reads from the target host node’s metadata/local_variables.

• Global: reads from /root/GDLinkGlobals.

• prefix (String, "")

• Prepended before the resolved value.

• suffix (String, "")

• Appended after the resolved value.

• decimals (Int, 2)

• Decimal precision applied to float values.

• target_node (String, "")

• Optional node identifier for the label/readout target.

• Empty string means “write to the executor’s host node”.

Generated UI Mockup — showing expanded properties

Label

-

x

Name:

Label this brick...

Property Name:

v

Scope:

v

Prefix:

v

Suffix:

v

Decimals:

v

Target Node:

v

Properties

This brick does not expose a generated property table yet. See the source specification for implementation notes.

Example Use Cases

Timer / System Time HUD:

1. Use a Timer variable and Timer executor for gameplay timers.

2. Add a Label executor with property_name = race_timer, scope = Local, and target_node pointing at the HUD label. Timer dictionaries render using their stored format.

3. For wall-clock text, use Set mode with text_content = "{_system_time.hms}" or "{_system_time.formatted}".

Clock listener remains registered for old scenes, but new authoring should read Timer variables or _system_time directly.

There is no separate System Time executor in the current surface. _system_time is a reserved Global dictionary updated every frame; use it directly in Label Set tokens for display, or pair it with the Variable listener when graph logic needs to react to wall-clock fields such as hour, minute, second, hms, or formatted.
