Advanced Material Shader

Category: Executor Tier: Pro

Purpose

Generic runtime interface to any ShaderMaterial uniform.

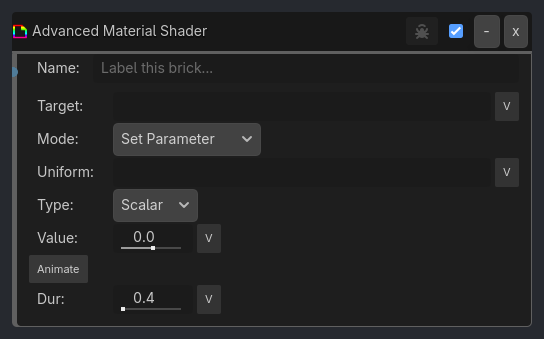

Visual Reference

As added to your scene

Generated UI Mockup — showing expanded properties

Advanced Material Shader

-

x

Name:

Label this brick...

Target:

v

Mode:

Set Parameter

Uniform:

v

Type:

Scalar

Value:

0.0

v

Value:X

1.0

v

Y

1.0

v

Value:X

1.0

v

Y

1.0

v

Z

1.0

v

Texture:

v

Dur:

0.4

v

Animate

Verbose

Properties

Property	Type	Default	Notes
Target	string		Node with ShaderMaterial (empty = parent). Supports name, relative path, or absolute path.
Mode	option	Set Parameter	How to interact with the shader uniform
Uniform	string		Exact uniform name in the shader (e.g. vertex_blend_weight, tex1_uv_scale)
Type	option	Scalar	Data type of the uniform value
Value	float	0.0	Scalar uniform value
Value	vector2	[1.0, 1.0]	Vector2 uniform (UV scale, offset)
Value	vector3	[1.0, 1.0, 1.0]	Vector3 uniform (position, direction)
Color	color	[1, 1, 1, 1]	Color uniform (tints, HDR values)
Texture	string		Resource path to Texture2D (e.g. res://textures/lava.png)
Animate	bool	False	Tween the value change over duration
Dur	float	0.4	Tween duration in seconds
Verbose	bool	False	Log shader parameter changes (controlled by ladybug button)
