Parent

Category: Executor Tier: Basic

Purpose

Manages real-time scene tree manipulation.

Visual Reference

As added to your scene

Runtime Behavior

Inputs

• Activate (Boolean): Triggers the specified structural change.

Properties

• Action (Enum, “Set Child”):

  • Set Child: Makes the target object a child of the current node.

  • Remove Child: Orphans the target object from its current parent.

  • Clear Children: Removes and cleans up all children from the current node.

  • Instantiate: Spawns a new scene as a child.

• Target Node (NodePath): The object to be reparented or managed.

• Keep Transform (Boolean, true): If true, uses native reparent() logic to maintain the object’s visual position.

• Destruction Mode (Enum, “Deferred”):

  • Deferred: Uses queue_free() for safe deletion.

  • Immediate: Uses native cleanup for performance-critical pools.

P3 Enhancements & Safety

• Safe Reparenting: Automatically handles Top Level flags and transform preservation to prevent “teleporting” children.

• Instantiation Metadata: Automatically attaches a unique UID to new instances, allowing Interaction Listeners to track them immediately.

• Ladybug Debug: Logs the successful reparenting or destruction event: [Hierarchy] Set Child | Target: Sword_01 -> Player_Hand.

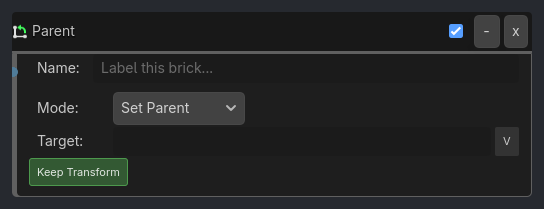

Generated UI Mockup — showing expanded properties

Parent

-

x

Name:

Label this brick...

Mode:

Set Parent

Target:

v

Keep Transform

Properties

Property	Type	Default	Notes
Mode	option	Set Parent	Set Parent: Reparent to target node. Remove Parent: Move to scene root
Target	string		Name or path of the new parent node (for Set Parent mode)
Keep Transform	bool	True	Preserve world position/rotation after reparenting
