Timer

Category: Executor Tier: Basic

Purpose

Controls a typed Timer variable directly.

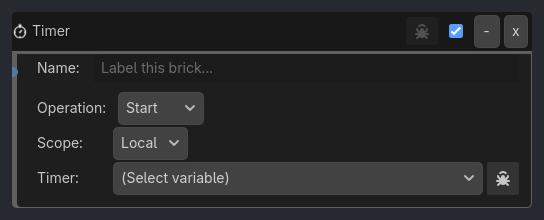

Visual Reference

As added to your scene

Runtime Behavior

• Executes once when activated by a gate.

• Reads the selected Timer variable, mutates its saved state, and writes it back.

• Start / Resume set running=true, paused=false.

• Stop clears both running and paused.

• Pause sets paused=true, running=false.

• Reset clears elapsed/capture state and stops the timer.

• Capture records the current elapsed time into the timer’s lap/split snapshot fields.

• Does not create display text by itself.

• Does not target other scene nodes in this wave; the authored scope + variable name are the address.

• Count Down stores elapsed time internally but display/evaluation uses duration_seconds - elapsed_seconds, clamped at zero.

Generated UI Mockup — showing expanded properties

Timer

-

x

Name:

Label this brick...

Operation:

v

Scope:

v

Timer Variable:

v

Verbose:

v

Properties

Property	Type	Default	Notes
operation	option, Start		One of Start, Stop, Pause, Resume, Reset, or Capture.
scope	Local or Global		where the Timer variable lives.
timer_variable	String, “”		target Timer variable name.
verbose	Bool, false		Hidden ladybug-controlled debug output.

Example Use Cases

Race Timer HUD

Timer Variable:
 Name = race_timer
 Mode = Count Up

Start Button / Delay -> Gate -> Timer(Start, Local, race_timer)
Reset Button / Delay -> Gate -> Timer(Reset, Local, race_timer)
Lap Button / Delay -> Gate -> Timer(Capture, Local, race_timer)

Label Executor:
 Variable = race_timer
 Scope = Local
 Target Node = RaceTimerLabel

Control UI Countdown

UI Click(StartButton) -> Gate -> Timer(Start, Local, ui_countdown)
UI Click(ResetButton) -> Gate -> Timer(Reset, Local, ui_countdown)
Variable(Local, ui_countdown, timer_field=remaining_seconds, Less or Equal, 0) -> Gate -> Scene(Load Scene, GameOver)
Label(Set, variable=ui_countdown) drives the HUD text.
